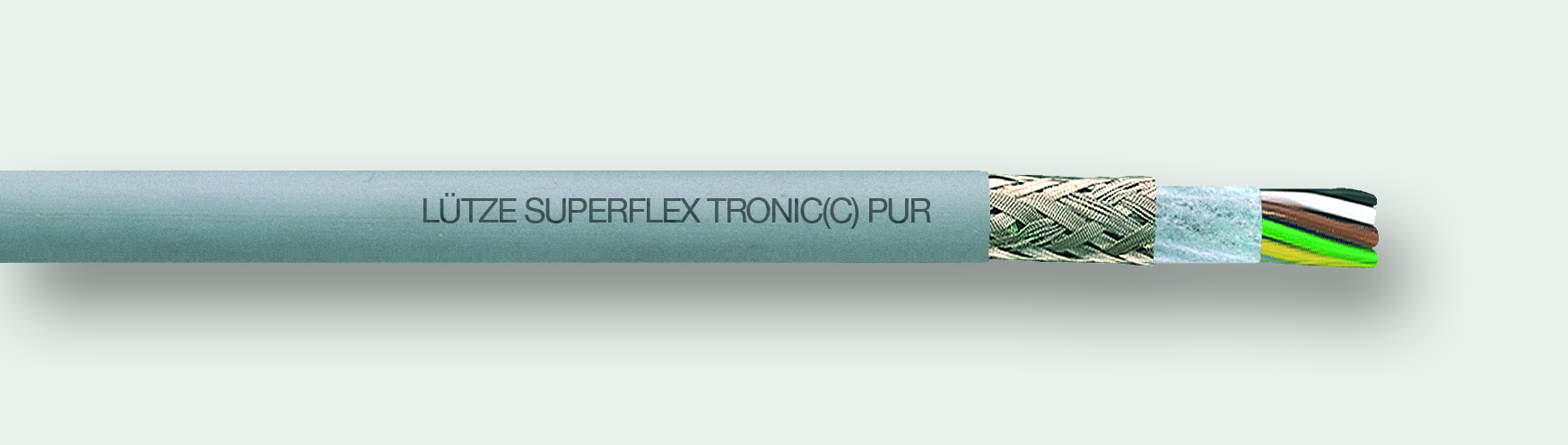

LUTZE SUPERFLEX® TRONIC (C) PUR High Flex

Shielded High Flexing Electronic Cable for energy chains

with UL AWM, CE approvals

Shielded construction:

Configuration: multi-conductor, color coded cable

Conductor: class 6 super finely stranded bare copper

Insulation: special TPE

Color code: DIN 47100

Shielding: tinned copper braid

Jacket: oil resistant PUR, gray

LUTZE SUPERFLEX ® Tronic PUR series is your choice for continuous linear flexing electronic cable with DIN 47100 color code and gray PUR jacket. This cable is intended for installation in drag chains with continuous linear movements.

Voltage

300V UL AWM

Temperature Range Moving

-25°C – +80°C

Temperature range fixed

-40°C – +80°C

Minimum bending radius moving

12 x cable OD

Minimum bending radius fixed

6 x cable OD

Conductor Marking

Color coded per DIN EN
50334 or DIN 47100

Isolation resistance

Min. 20MΩ x km

Burning behavior

Flame retardant per

DIN EN 60332-1-2

IEC 60332-1

UL 1581 section VW-1

Flame Test FT1

Halogen free

According to DIN EN 60754-1

Oil Resistance

Oil Res II

  • UL AWM Style 20549

  • RoHS

  • REACH

  • Multi-conductor cable for robots, handling equipment, machine tools, C-tracks and applications with extremely rough operating conditions

  • For the most demanding flexing applications such as C-tracks and linear flexing

  • Compatible with all major brand C-tracks

  • Super finely stranded per Class 6 for continuous moving applications

  • PUR jacket and TPE conductor insulation for use in extremely harsh operating conditions

  • Highest level of resistance against cooling fluids, greases and oils

  • Abrasion, high wear and tear resistance

  • Hydrolysis, microbe and decompose resistant

  • Dry, wet and damp conditions

  • UV resistant

  • Talc and Silicone free

Part Number Description AWG # of Conductors Nom OD (in)

26AWG

117091 SU TR(C)(3X0.14) PUR 26 3 0.165
117092 SU TR(C)(4X0-14) PUR AWG 26/4C 26 4 0.177
117093 SU TR(C)PUR (5X0-14) 26 5 0.189
117094 SU TR(C) PUR (7X0.14) 26 7 0.217
117095 SU TR(C) PUR (10X0.14) 26 10 0.244
117096 SU TR(C)PUR (12X0-14) 12x0.14 = 26Ga/12c 26 12 0.248
117097 SU TR(C) PUR (18X0.14) 26 18 0.283
117098 SU TR(C) PUR (25X0.14) 26 25 0.335

24AWG

117099 SU TR(C)(2X0-25) PUR AWG 24/2C 24 2 0.169
117100 SU TR(C)PUR(3X0-25) 24 3 0.177
117101 SU TR(C)PUR(4X0-25) 24 4 0.189
117102 SU TR(C)PUR(5X0-25) 24 5 0.201
117103 SU TR(C)PUR(7X0-25) 24 7 0.228
117104 SU TR(C)PUR(10X0-25) 24 10 0.264
117105 SU TR(C)PUR(12X0-25) 24 AWG/12C 24 12 0.268
117106 SU TR(C)PUR(18X0-25) 24 18 0.307
117107 SU TR(C)PUR(25X0-25) 24 25 0.370

22AWG

117108 SU TR(C)PUR(2X0-34) 22 2 0.177
117109 SU TR(C)PUR(3X0-34) 22 3 0.185
117110 SU TR(C)PUR(4X0-34) AWG 22/4C 22 4 0.197
117111 SU TR(C)PUR 22G/5C 22 5 0.213
117112 SU TR(C)PUR(7X0-34) 22 7 0.244
117113 SU TR(C)PUR(10X0-34) 22 10 0.280
117115 SU TR(C)PUR(18X0-34) 22 18 0.331
117116 SU TR(C)PUR(25X0.34) 22 25 0.394
