Tray Cable

UL type TC and TC-ER cables for cable tray systems

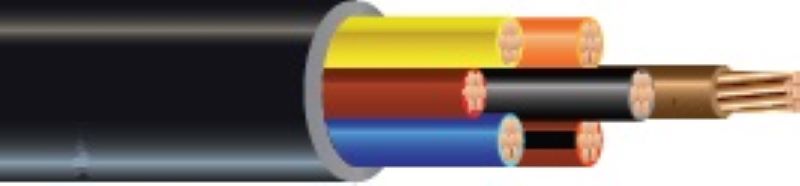

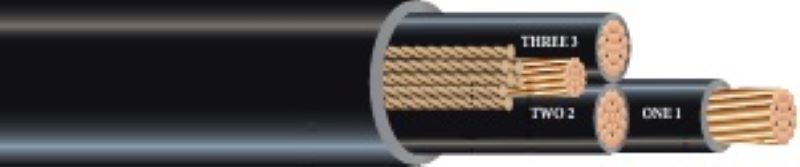

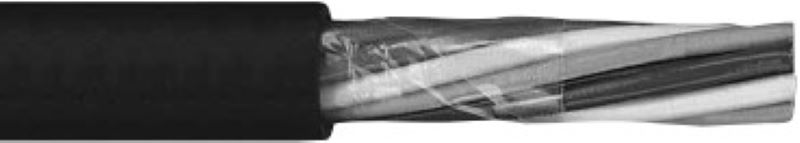

Tray Cables (UL type TC) are used for control and power applications in a variety of industries where cable tray systems are installed for routing and support. Proper installations will see 300V rated tray cables separated within the tray from 600V rated tray cables. UL Listings that contain “-ER” permit the cable to exit the cable tray unsupported for a length of six feet. UL1277 is the UL standard for power and control tray cables. Right Hand Industrial supplies an wide range of tray cable including VNTC, flexible tray cable type TC, TC-ER, Power Limited Tray Cable (PLTC) and continuous flex rated tray cables.

Tray Cable Types

300V Power Limited Tray Cable Series

Electronic PLTC PVC A303, Unshielded

  • Jacket: PVC, gray

  • Insulation: SR-PVC, color coded

  • Voltage: 300V

  • Certifications: UL PLTC 105C°, AWM 2464

  • Range: AWG 22 -16;  up to 25 conductors

UNITRONIC® 300 – PVC, Unshielded

  • Jacket: PVC, gray

  • Insulation: special PVC, color coded

  • Voltage: 300V

  • Certifications: UL CMG, PLTC (22-20AWG), PLTC-ER, ITC-ER (18-16AWG), AWM 2464

  • Range: AWG 24 -16;  up to 25 conductors

LUTZE Electronic PLTC PVC, A313, Shielded

  • Jacket: PVC, gray

  • Insulation: SR-PVC, color coded

  • Shielding: foil tape, tinned copper braid shield and drain wire

  • Voltage: 300V

  • Certifications: UL PLTC, AWM 2464

  • Range: AWG 22 -16;  up to 25 conductors

UNITRONIC® 300 S – PVC, Shielded

  • Jacket: PVC, gray

  • Insulation: special PVC, color coded

  • Shielding: foil, tinned copper braid shield

  • Voltage: 300V

  • Certifications: UL CMG, PLTC (22-20AWG), PLTC-ER, ITC-ER (18-16AWG), AWM 2464

  • Range: AWG 24 -16;  up to 25 conductors

LUTZE Electronic PLTC PVC, A314, Shielded, multi-paired

  • Jacket: PVC, gray

  • Insulation: SR-PVC, color coded

  • Shielding: foil tape, tinned copper braid shield and drain wire

  • Voltage: 300V

  • Certifications: UL PLTC, AWM 2464

  • Range: AWG 22 – 16; up to 8 pairs

UNITRONIC® 300 STP PVC, Shielded, multi-paired

  • Jacket: PVC, gray

  • Insulation: special PVC, color coded

  • Shielding: foil, tinned copper braid shield

  • Voltage: 300V

  • Certifications: UL CMG, PLTC (22-20AWG), PLTC-ER, ITC-ER (18-16AWG), ITC (24-20AWG), AWM 2464

  • Range: AWG 24 -16;  up to 15 pairs

  •

600V Flexible Tray Cable Series

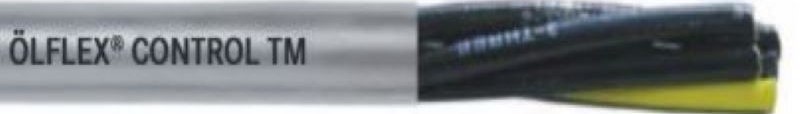

LAPP ÖLFLEX® CONTROL TM, Unshielded

  • Jacket: PVC/TPE, gray

  • Insulation: PVC/Nylon, black

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 20886, 1000V WTTC, CSA AWM

  • Range: AWG 18 – 10; up to 25 conductors

LUTZE SILFLEX® Tray-ER Blue PVC, Unshielded

  • Jacket: gray PVC jacket

  • Insulation: PVC, blue

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW

  • Range: AWG 18 -12; up to 37 conductors

LUTZE SILFLEX® Control Cable PVC, Unshielded

  • Jacket: PVC, gray

  • Insulation: PVC/Nylon, black

  • Voltage: 600V

  • Certifications: UL TC-ER-JP, MTW, AWM 20886, 1000V WTTC

  • Range: AWG 20 -2;  up to 50 conductors

Tecnikabel USA TKF100US Tray Cable PVC, Unshielded

  • Jacket: PVC, black

  • Insulation: PVC/Nylon, black

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, CSA type CIC; CE

  • Range: AWG 18 – 2/0; up to 41 conductors

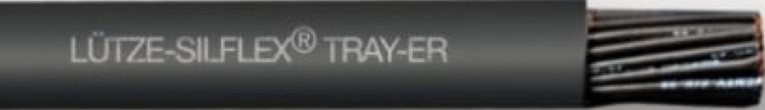

LUTZE SILFLEX® Tray-ER PVC, Unshielded

  • Jacket: PVC, black

  • Insulation: PVC/Nylon, black w/ white #’s, GN/YL ground

  • Voltage: 600V

  • Certifications: UL TC-ER-JP, MTW, AWM 20886

  • Range: AWG 18 -6; up to 25 conductors

Elettrotek Kabel GAALFLEX® Tray 1002 PVC, Unshielded

  • Jacket: PVC, black

  • Insulation: special PVC, black

  • Voltage: 600V / 1000V

  • Certifications: UL TC-ER, MTW, AWM 21179, 1000V WTTC, Flexible Motor Supply

  • Range: AWG 18 – 250 MCM; up to 25 conductors

LUTZE SILFLEX® Tray-ER TPE, Unshielded

  • Jacket: TPE, black

  • Insulation: PVC/Nylon, black

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 21270 105°C, 1000V WTTC

  • Range: AWG 18 – 4/0, up to 25 conductors

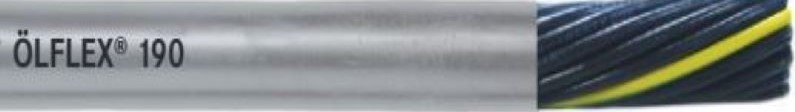

LAPP ÖLFLEX® 190, Unshielded

  • Jacket: PVC/TPE, gray

  • Insulation: PVC, black

  • Voltage: 600V

  • Certifications: UL TC-ER, AWM 2587, PLTC-ER (20AWG), 1000V WTTC, CSA AWM

  • Range: AWG 20 – 2;  up to 50 conductors

ÖLFLEX® CONTROL TM – PVC/TPE, Shielded, gray

  • Jacket: PVC, gray

  • Insulation: PVC/Nylon, black

  • Shielding: foil tape, tinned copper braid shield

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 2587, 1000V WTTC, CSA AWM

  • Range: AWG 18 – 10;  up to 25 conductors

SILFLEX® Control Cable PVC, Shielded, gray

  • Jacket: PVC, gray

  • Insulation: PVC/Nylon, black

  • Voltage: 600V

  • Certifications: UL TC-ER-JP, MTW, AWM 20886, 1000V WTTC

  • Shielding: foil tape, tinned copper braid shield and drain wire

  • Range: AWG 20 -10; up to 25 conductors

GAALFLEX® Tray 1002 PVC, Shielded, black

  • Jacket: PVC, black

  • Insulation: special PVC, black

  • Shielding: aluminum tape and tinned copper braid

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 21179, 1000V Flexible Motor Supply, WTTC

  • Range: AWG 18 – 250 MCM; up to 25 conductors

ÖLFLEX® TRAY II PVC/TPE, Shielded, black

  • Jacket: PVC/TPE, black

  • Insulation: special PVC/Nylon, black

  • Shielding: foil tape and tinned copper braid

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 20886, PLTC-ER (18-12AWG), 1000V WTTC, CSA AWM

  • Range: AWG 18 – 2 AWG; up to 25 conductors

SILFLEX® Tray-ER TPE, Shielded, black

  • Jacket: TPE, black

  • Insulation: PVC/Nylon, black

  • Shielding: foil tape, tinned copper braid shield

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 21270 105°C, 1000V WTTC

  • Range: AWG 18 – 10; up to 25 conductors

LAPP ÖLFLEX® 190 CY, Unshielded

  • Jacket: PVC/TPE, gray

  • Insulation: PVC, black

  • Shielding: tinned copper braid, PVC inner jacket

  • Voltage: 600V

  • Certifications: UL TC-ER, AWM 2587, PLTC-ER (20AWG), 1000V WTTC, CSA AWM

  • Range: AWG 20 – 2;  up to 50 conductors

600V Continuous Flex Tray Cable Series

MOTIONFLEX® Tray-ER TPE, Unshielded

  • Jacket: TPE, black

  • Insulation: PVC/Nylon, black

  • Voltage: 600V / 1000V

  • Certifications: 600V UL TC-ER, MTW, AWM 21270

  • Range:

ÖLFLEX® CHAIN TM, PVC/TPE, Unshielded

  • Jacket: PVC/TPE, black

  • Insulation: PVC/Nylon, black

  • Voltage: 600V / 1000V

  • Certifications: 600V UL TC-ER, CSA, 1000V AWM 20886, WTTC

  • Range: AWG 18 – 10;  up to 25 conductors

MOTIONFLEX® Tray-ER TPE, Shielded

  • Jacket: TPE, black

  • Insulation: PVC/Nylon, black

  • Shielding: tinned copper braid

  • Voltage: 600V

  • Certifications: 600V UL TC-ER, MTW, AWM 21270

  • Range:

ÖLFLEX® CHAIN TM, PVC/TPE, Unshielded

  • Jacket: PVC/TPE, black

  • Insulation: PVC/Nylon, black

  • Voltage: 600V / 1000V

  • Certifications: 600V UL TC-ER, CSA, 1000V AWM 20886, WTTC

  • Range: AWG 18 – 10;  up to 25 conductors
