Flexible Power and Control Cables

UL type AWM and MTW for stationary applications

Flexible ​Multi-conductor Power and Control Cables are the fabric of industrial control systems, These cables are found within electrical cabinets and on machinery, consolidating signal wires or distributing power from one device to another on the “machine-level”. Right Hand Industrial offers a wide variety unshielded and shielded machine level wiring carrying the Appliance Wiring Material (AWM) and Machine Tool Wire (MTW) approvals for applications such as motor connections, HVAC, conveyors, automation machinery and many others. For continuous flexing applications, see High Flex Power and Control Cable OR Tray Cables for type TC rated cables for installation in cable tray.

UNSHIELDED Flexible Power Control Cables

LUTZE SILFLEX® N PVC, Unshielded

  • Jacket: PVC, gray

  • Insulation: PVC, black

  • Voltage: 600V

  • Certifications: UL AWM style 2587

  • Range: AWG 20 – 14; up to 25 conductors

Elettrotek Kabel GAALFLEX® Control 600 PVC, Unshielded

  • Jacket: PVC, gray

  • Insulation: PVC, black

  • Voltage: 600V

  • Certifications: UL AWM style 2587, CSA AWM

  • Range: AWG 20 – 1; up to 61 conductors

LAPP ÖLFLEX® 490 P, Unshielded

  • Jacket: PUR, gray

  • Insulation: PVC, black

  • Voltage: 600V

  • Certifications: UL AWM 20234, CSA AWM

  • Range: AWG 20 – 14; up to 25 conductors

LUTZE SILFLEX® Control Cable PVC, Unshielded

  • Jacket: PVC, gray

  • Insulation: PVC/Nylon, black

  • Voltage: 600V

  • Certifications: UL TC-ER-JP, MTW, AWM 20886, 1000V WTTC

  • Range: AWG 20 -2;  up to 50 conductors

LUTZE SILFLEX® Tray-ER Blue PVC, Unshielded

  • Jacket: gray PVC jacket

  • Insulation: PVC, blue

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW

  • Range: AWG 18 -12; up to 37 conductors

LAPP ÖLFLEX® CONTROL TM, Unshielded

  • Jacket: PVC/TPE, gray

  • Insulation: PVC/Nylon, black

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 20886, 1000V WTTC, CSA AWM

  • Range: AWG 18 – 10; up to 25 conductors

LAPP ÖLFLEX® 190, Unshielded

  • Jacket: PVC/TPE, gray

  • Insulation: PVC, black

  • Voltage: 600V

  • Certifications: UL TC-ER, AWM 2587, PLTC-ER (20AWG), 1000V WTTC, CSA AWM

  • Range: AWG 20 – 2;  up to 50 conductors

Tecnikabel USA TKF100US Tray Cable PVC, Unshielded

  • Jacket: PVC, black

  • Insulation: PVC/Nylon, black

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, CSA type CIC; CE

  • Range: AWG 18 – 2/0; up to 41 conductors

Elettrotek Kabel GAALFLEX® Tray 1002 PVC, Unshielded

  • Jacket: PVC, black

  • Insulation: special PVC, black

  • Voltage: 600V / 1000V

  • Certifications: UL TC-ER, MTW, AWM 21179, 1000V WTTC, Flexible Motor Supply

  • Range: AWG 18 – 250 MCM; up to 25 conductors

LUTZE SILFLEX® Tray-ER PVC, Unshielded

  • Jacket: PVC, black

  • Insulation: PVC/Nylon, black w/ white #’s, GN/YL ground

  • Voltage: 600V

  • Certifications: UL TC-ER-JP, MTW, AWM 20886

  • Range: AWG 18 -6; up to 25 conductors

LUTZE SILFLEX® Tray-ER TPE, Unshielded

  • Jacket: TPE, black

  • Insulation: PVC/Nylon, black

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 21270 105°C, 1000V WTTC

  • Range: AWG 18 – 4/0, up to 25 conductors

SHIELDED Flexible Power Control Cables

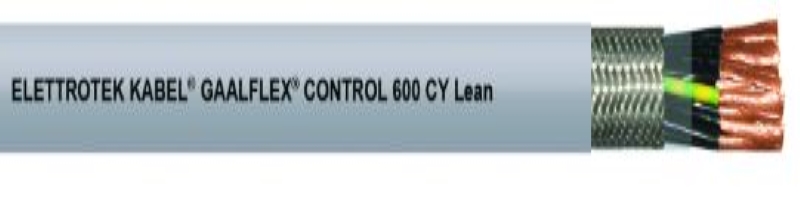

Elettrotek Kabel GAALFLEX® Control 600 CY, Unshielded

  • Jacket: PVC, gray

  • Insulation: PVC, black

  • Shielding: tinned copper braid

  • Voltage: 600V

  • Certifications: UL AWM style 2587, CSA AWM

  • Range: AWG 20 – 1; up to 61 conductors

LAPP ÖLFLEX® 490 P, Unshielded

  • Jacket: PUR, gray

  • Insulation: PVC, black

  • Voltage: 600V

  • Certifications: UL AWM 20234, CSA AWM

  • Range: AWG 20 – 14; up to 25 conductors

SILFLEX® Control Cable PVC, Shielded, gray

  • Jacket: PVC, gray

  • Insulation: PVC/Nylon, black

  • Voltage: 600V

  • Certifications: UL TC-ER-JP, MTW, AWM 20886, 1000V WTTC

  • Shielding: foil tape, tinned copper braid shield and drain wire

  • Range: AWG 20 -10; up to 25 conductors

ÖLFLEX® CONTROL TM – PVC/TPE, Shielded, gray

  • Jacket: PVC, gray

  • Insulation: PVC/Nylon, black

  • Shielding: foil tape, tinned copper braid shield

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 2587, 1000V WTTC, CSA AWM

  • Range: AWG 18 – 10;  up to 25 conductors

LAPP ÖLFLEX® 190 CY, Unshielded

  • Jacket: PVC/TPE, gray

  • Insulation: PVC, black

  • Shielding: tinned copper braid, PVC inner jacket

  • Voltage: 600V

  • Certifications: UL TC-ER, AWM 2587, PLTC-ER (20AWG), 1000V WTTC, CSA AWM

  • Range: AWG 20 – 2;  up to 50 conductors

SILFLEX® Control Cable PVC, Shielded, gray

  • Jacket: PVC, gray

  • Insulation: PVC/Nylon, black

  • Voltage: 600V

  • Certifications: UL TC-ER-JP, MTW, AWM 20886, 1000V WTTC

  • Shielding: foil tape, tinned copper braid shield and drain wire

  • Range: AWG 20 -10; up to 25 conductors

GAALFLEX® Tray 1002 PVC, Shielded, black

  • Jacket: PVC, black

  • Insulation: special PVC, black

  • Shielding: aluminum tape and tinned copper braid

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 21179, 1000V Flexible Motor Supply, WTTC

  • Range: AWG 18 – 250 MCM; up to 25 conductors

ÖLFLEX® TRAY II PVC/TPE, Shielded, black

  • Jacket: PVC/TPE, black

  • Insulation: special PVC/Nylon, black

  • Shielding: foil tape and tinned copper braid

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 20886, PLTC-ER (18-12AWG), 1000V WTTC, CSA AWM

  • Range: AWG 18 – 2 AWG; up to 25 conductors

SILFLEX® Tray-ER TPE, Shielded, black

  • Jacket: TPE, black

  • Insulation: PVC/Nylon, black

  • Shielding: foil tape, tinned copper braid shield

  • Voltage: 600V

  • Certifications: UL TC-ER, MTW, AWM 21270 105°C, 1000V WTTC

  • Range: AWG 18 – 10; up to 25 conductors
